As industrial manufacturing continues to upgrade towards automation and energy saving, spray cooling systems are increasingly used in metallurgy, electricity, glass, electronics and other industries. As a key component of the cooling system, the performance of the nozzle directly determines the cooling efficiency and operating stability of the overall system. Compared with traditional nozzles, Meg Spray Nozzles are gradually becoming the first choice for high-end spray cooling systems due to their superior performance in spray shape control, droplet size distribution, flow uniformity, etc.
Meg Spray Nozzle atomization principle: precise, efficient and stable
Meg Spray Nozzles adopt the hydraulic atomization principle, and their fan-shaped spray shape is particularly suitable for covering large cooling areas. Compared with traditional hollow cone or solid cone nozzles, Meg Spray Nozzles have significant advantages in the following aspects:
1. Superior atomization uniformity

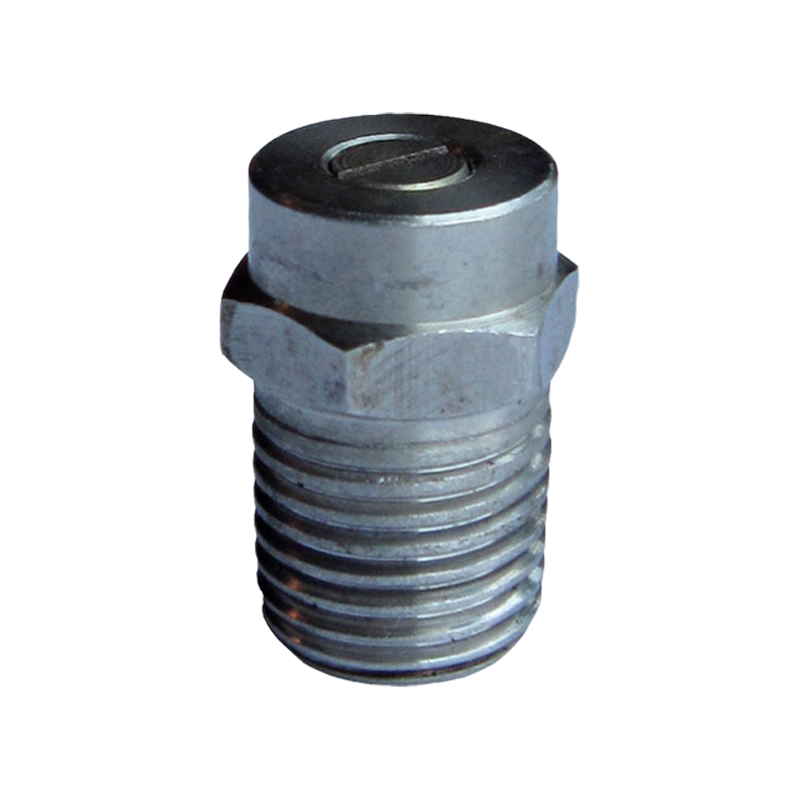

Meg Spray Nozzles use a precise wedge-shaped water outlet design to shear the liquid into fine droplets of uniform size to form a flat mist curtain, which can achieve a more uniform surface cooling effect. This structure is particularly suitable for scenes with extremely high requirements for cooling uniformity, such as continuous cooling belts, steel plate cooling, and glass annealing.
2. Strong controllability of particle size
In the cooling system, the droplet size directly affects the evaporation rate and cooling efficiency. The Meg Spray Nozzle can achieve fine control of the droplet SMD (Sauter Mean Diameter) by adjusting the nozzle model and system pressure, achieving higher cooling efficiency and energy consumption ratio, which is an advantage that traditional nozzles cannot match.
3. Larger coverage area and higher overlap rate
Meg Spray Nozzles provide a variety of spray angle options (such as 40°, 65°, 80°, 110°, etc.), making it easier to achieve spray overlap in the installation layout and avoid dead corners or cooling blind spots. This flexibility is particularly important in complex process lines (such as hot-rolled steel plates and electronic panels).
Comparison with traditional nozzles: System-level optimization brought by Meg Spray Nozzles
Many traditional nozzles have problems such as coarse atomization, unstable spray width, and easy clogging. These problems have been difficult to meet the needs of high efficiency, low energy consumption and continuous production in modern industrial spray cooling. In comparison, Meg Spray Nozzles have the following system advantages:
Lower operating pressure and less energy consumption: Under the same cooling effect, Meg Spray Nozzles can usually operate at lower pressure, thereby reducing system energy consumption and extending the life of the pump station.
Strong anti-clogging ability and low maintenance cost: The nozzle design pays more attention to the smoothness of the flow channel and the self-cleaning of the spray hole. Combined with the filtration system and quick-release nozzle seat provided by Baige Machinery, the maintenance frequency is effectively reduced.
Strong adaptability and high working condition compatibility: Meg Spray Nozzles are suitable for a variety of media environments such as circulating water, deionized water, and low-viscosity liquids, which can meet different industrial cooling needs.
Technical support and manufacturing guarantee of Yinzhou Baige Machinery
Ningbo Yinzhou Baige Machinery Manufacturing Co., Ltd., as a leading domestic manufacturer of cleaning and spray system parts, has a standardized plant of more than 5,000 square meters, equipped with more than 50 precision processing equipment, and has the ability to produce millions of sets of nozzles and accessories annually. The company has passed the GB/T 19001-2016 / ISO 9001:2015 quality management system certification, ensuring that the production of each Meg Spray Nozzle meets international standards.
The core advantages provided by Yinzhou Baige Machinery include:
The ability to supply multiple models of Meg Spray Nozzles: covering various flow numbers (such as 8010, 8030, 8050, etc.) and spray angles to meet the diverse needs of medium-pressure to high-pressure systems.
Own engineering research and development team: can provide personalized nozzle selection suggestions based on the customer's cooling system layout, and support OEM/ODM customized services.
Systematic accessories: In addition to the nozzle body, the company also provides high-pressure pipes, quick connectors, rotating nozzles, foam sprayers and other cooling system auxiliary accessories to achieve system integration procurement.

In the modern industrial field, the spray system is widely used in key links such as cooling, cleaning, humidification, dust removal, and coating. As the core component, the nozzle's operating stability directly affects the working effect and efficiency of the overall system. Many users have found that the nozzles have problems such as deflection, poor atomization, spray fan distortion, and insufficient spray volume after the system has been running for a period of time. This not only affects the process quality, but also causes increased system energy consumption, equipment corrosion, and even safety hazards in serious cases.
Since its establishment in 2011, Ningbo Yinzhou Baige Machinery Manufacturing Co., Ltd. has always been committed to the research and development and manufacturing of high-efficiency nozzles and their accessories, and has accumulated a lot of practical experience in nozzle operation maintenance and performance optimization.
The main manifestations of Meg spray nozzle deflection and poor atomization
Nozzle deflection is usually manifested as the spray direction deviates from the original set angle or the spray width is asymmetric; poor atomization is manifested as coarser droplets, reduced atomization range, abnormal spray shape, or the formation of water columns. These problems often lead to uneven process cooling, reduced cleaning effect, or waste of raw materials, especially in occasions with high requirements for spray accuracy (such as glass cooling, electronic component cleaning, etc.).
Common causes of nozzle performance degradation
1. Blockage or partial blockage of the nozzle hole
During long-term use, the nozzle hole is easily blocked by scale, rust, impurities, chemical residues, etc., especially in systems without filters or with poor water quality. Blockage can cause the spray trajectory to deviate or form irregular atomization.
Solution suggestion: Choose a nozzle with a self-cleaning function or add a filter to the system. Baige Machinery offers a variety of industrial-grade filters and stainless steel nozzles to effectively extend the service life.
2. Nozzle wear or corrosion
High-pressure water flow or liquid containing particles will cause continuous wear on the inside of the nozzle, especially brass or plastic nozzles. After long-term use, the nozzle diameter will expand and the shape will be distorted, resulting in spray width deviation and increased particle size. Chemical media may also corrode the nozzle material and affect its structural stability.
Solution suggestion: Choose wear-resistant and corrosion-resistant nozzle materials (such as 316 stainless steel, ceramic, etc.) according to the working conditions. Baige Machinery supports nozzle material customization to meet the adaptation needs of different media.
3. The installation position is offset or loose.
The nozzle may be offset or loose during continuous operation or due to pipeline vibration, ambient temperature changes, etc., resulting in a change in the spray angle. This is especially likely to happen when the quick-connect spray seat is not used or the fixing fixture is loose.

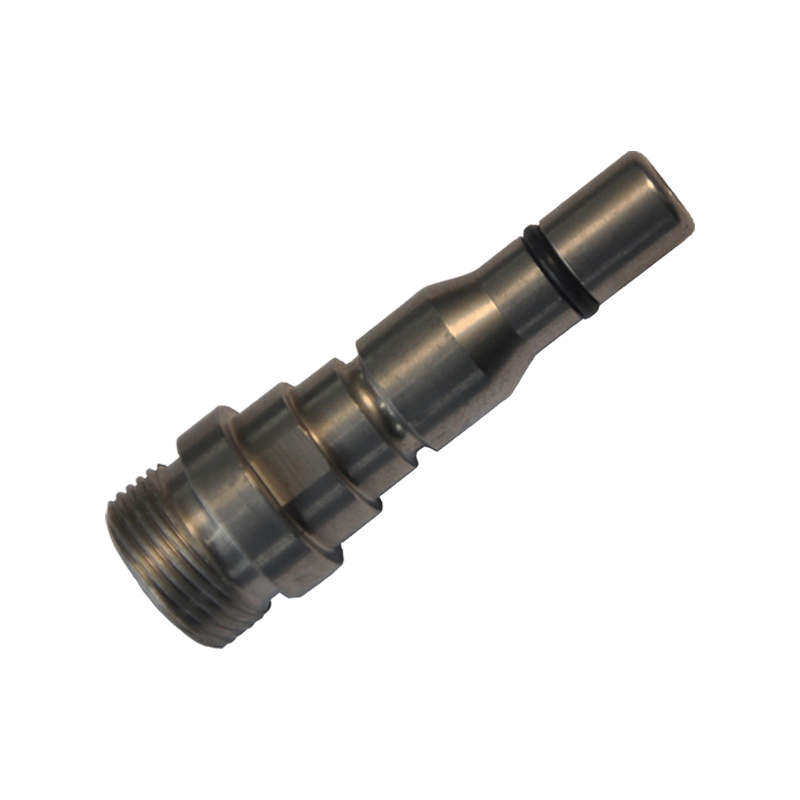

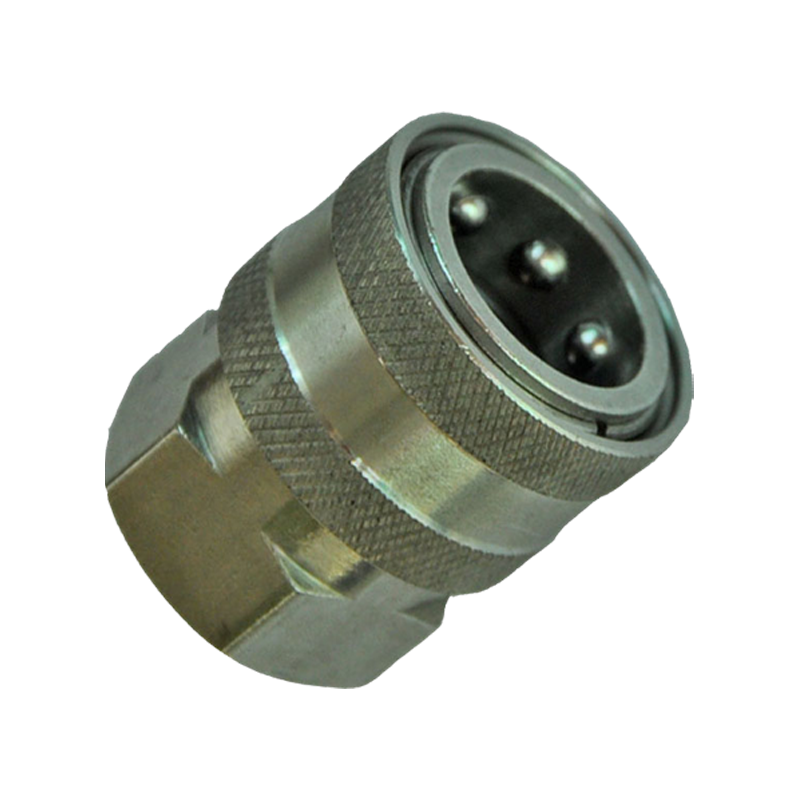

Solution suggestion: Use quick connectors and shock-proof joints with stable structure and strong sealing. Baige Machinery's quick coupling system and spray seat design have high installation accuracy and anti-loosening structure, which effectively improves the operation stability.
4. Abnormal system pressure
If the system pressure is too high or too low, it will affect the atomization performance of the nozzle. Low pressure will cause insufficient atomization to form a water column, and high pressure may cause abnormal droplet breakage, resulting in a scattered spray cone.
Solution suggestion: Use a pressure-stabilizing pump and install a pressure gauge. Baige Machinery provides matching high-precision pressure gauges and pressure regulating devices to facilitate users to monitor the system status in real time and prevent nozzle abnormalities caused by pressure fluctuations.
5. Nozzle model mismatch or wrong parameter selection
Some users did not perform technical calculations for flow, angle, and pressure matching when replacing nozzles, resulting in actual operating conditions not matching nozzle performance, causing abnormal spraying.
Solution suggestion: During the selection stage, key parameters such as the medium to be used, working pressure, flow range, and spray angle should be clearly defined. Baige Machinery has an experienced technical support team that can assist customers in professional nozzle selection and operating condition simulation.
Yinzhou Baige Machinery's comprehensive capabilities in nozzle system optimization
Ningbo Yinzhou Baige Machinery Manufacturing Co., Ltd. has a 5,000 square meter production base and more than 50 professional processing equipment, with the ability to produce millions of various nozzles and cleaning accessories annually. The company has passed the GB/T 19001-2016 / ISO 9001:2015 quality system certification to ensure that every nozzle shipped out of the factory has been strictly tested.
Core service capabilities include:
Full range of nozzles and quick-release connectors: covering various specifications such as conventional cleaning nozzles, fan nozzles, atomizing nozzles, rotary nozzles, etc.
Various materials, suitable for different working conditions: support customization of materials such as stainless steel, brass, PP, ceramics, etc.
Provide atomization performance test reports and on-site technical support;
OEM/ODM services: customize exclusive nozzle models and system interfaces according to customer application scenarios.
